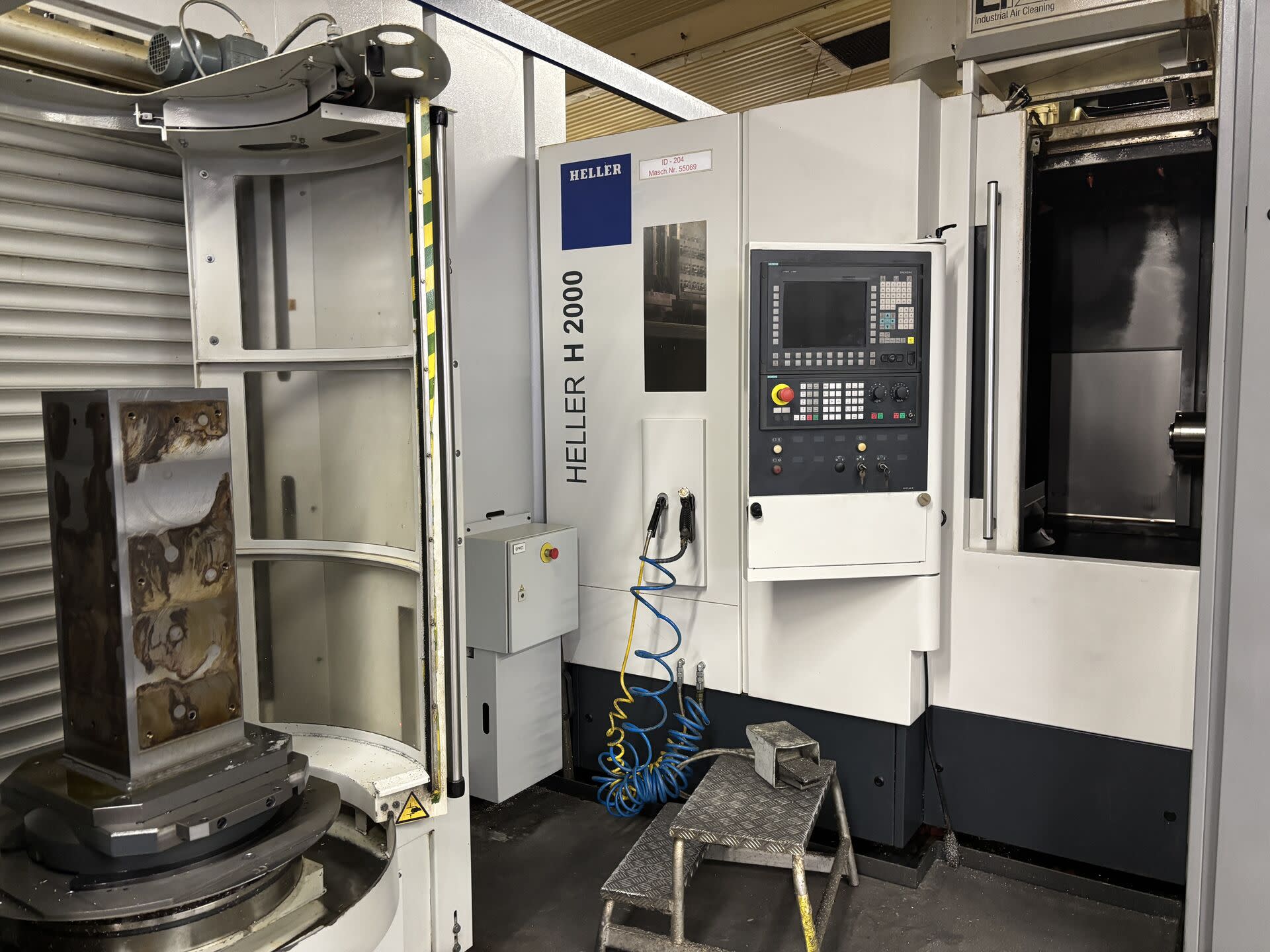

HELLER H 2000 Horizontal Machining Centre with Fastems Automation
HELLER H 2000 Horizontal Machining Centre with Fastems Automation
Fully automated HELLER H 2000 Horizontal Machining Centres with FASTEMS Pallet Automation.
2 x HELLER 4-axis Machining Centres (all data per machine)
Serial numbers: 55069 & 55070
Control system: SIEMENS Sinumerik 840D sl
Tool system: HSK 63
Fully automated HELLER H 2000 Horizontal Machining Centres with FASTEMS Pallet Automation.
2 x HELLER 4-axis Machining Centres (all data per machine)
Serial numbers: 55069 & 55070
Control system: SIEMENS Sinumerik 840D sl
Tool system: HSK 63
Spindle
Spindle speed max.: 16,000 rpm

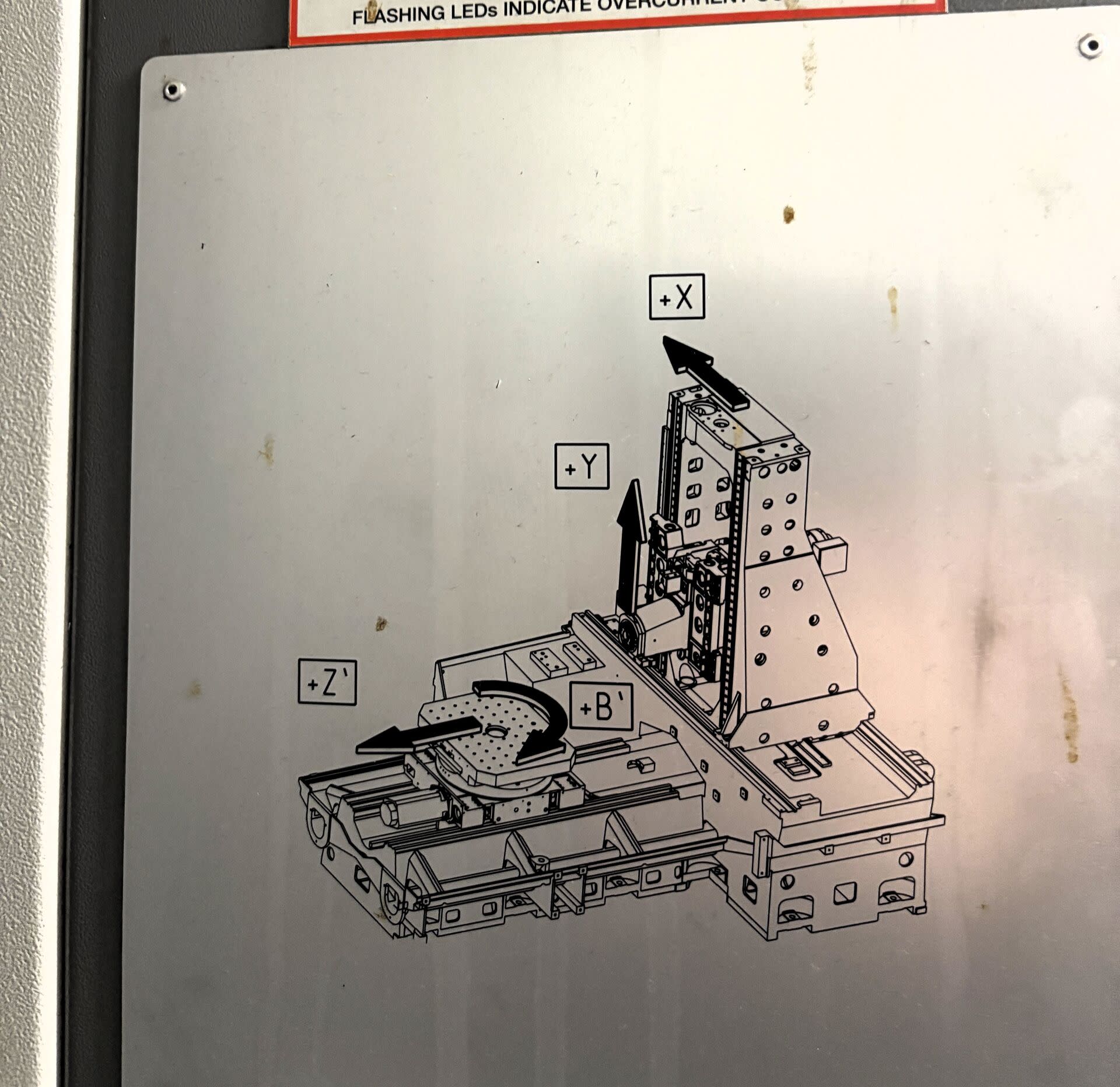

Traverse paths and Speeds
Axis travel X-axis: 630 mm
Axis travel Y-axis: 630 mm
Axis travel Z-axis: 630 mm
Axis travel B-axis: 360° (360,000 x 0.001°)

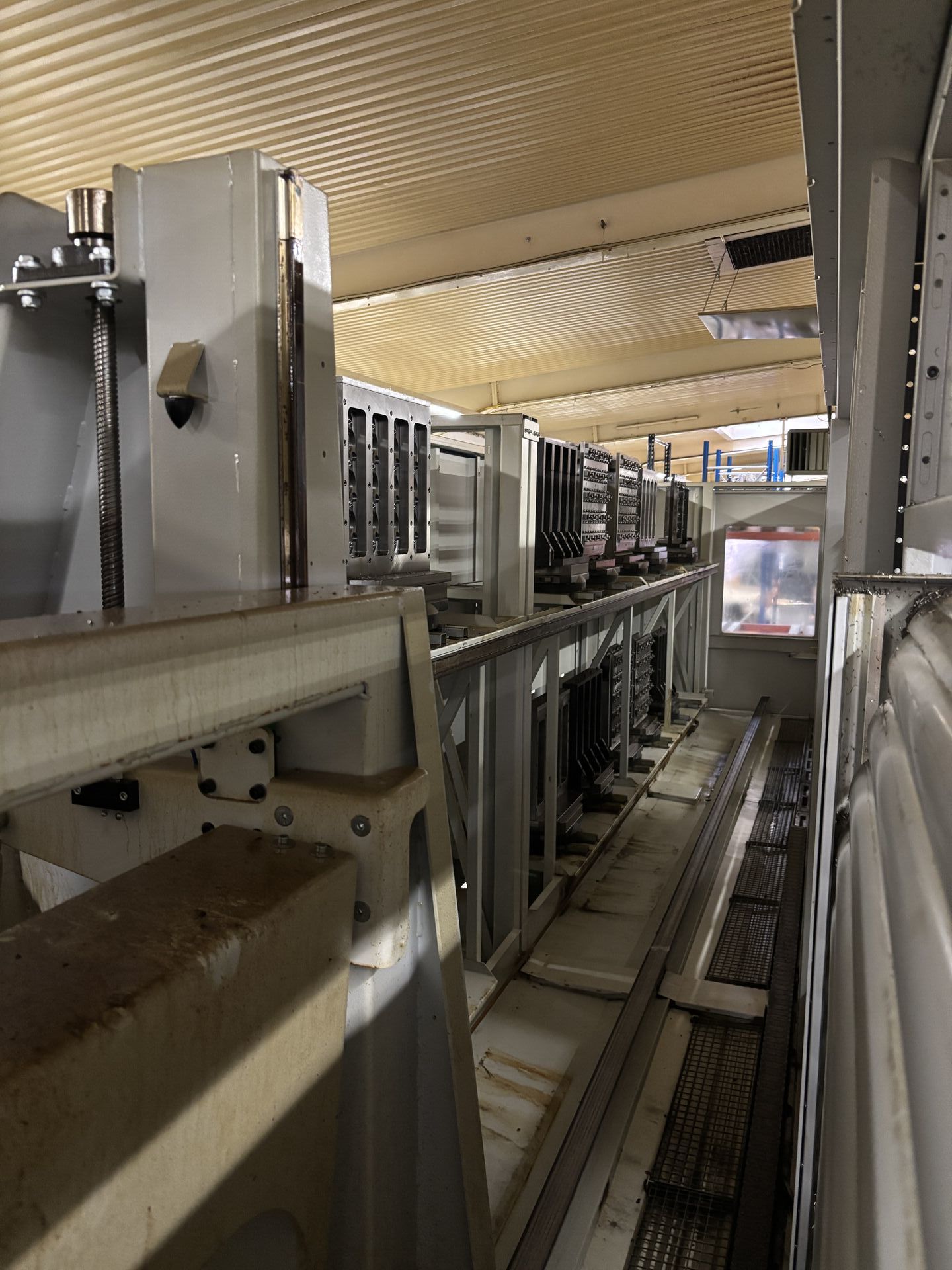

FASTEMS pallet automation FPC 750
24 storage locations
Pallet size: 500 x 400 mm
2 set-up stations
Tool changer
Tool changing stations machine number 55069: 240
Tool changing stations machine number 55070:160
In the technical data you will find further information on the machine layout and general technical data.
You can get a detailed overview with our 3D tour!
