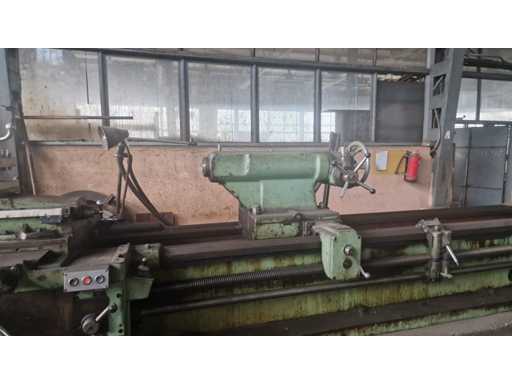

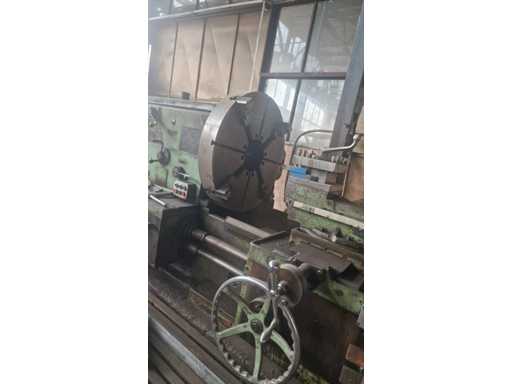

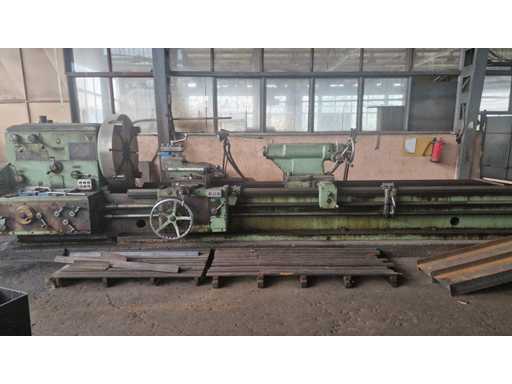

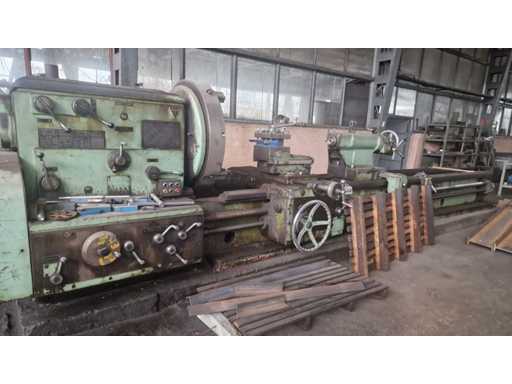

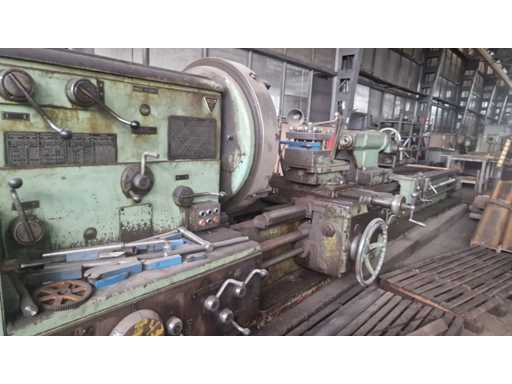

165 - Heavy duty lathe 1000 X 5000 mm
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Type
- 165
- Terms of delivery
- Free on truck
Description
Model: Model 165 x 5000
Type: Heavy-duty long-bed engine lathe
Technical specifications:
- Distance between centers: 5,000 mm
- Max. turning diameter (swing over bed): 1,000 mm
- Max. turning diameter (over cross slide): 600–650 mm
- Max. workpiece weight: Approx. 10,000 kg (10 tonnes)
- Spindle bore diameter: Approx. 85–95 mm
- Spindle speed range: 5–500 rpm
- Main motor power: 22 kW

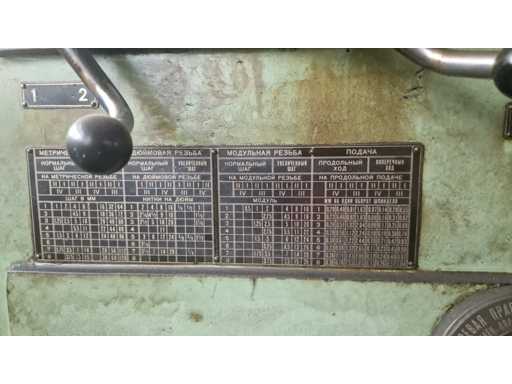

Threading capabilities:
- Metric threads: 1 to 120 mm
- Inch threads: 28 to 1/4 TPI
- Module threads: 0.5 to 30 M
Machine dimensions (L × W × H): Approx. 8,050 × 2,200 × 1,876 mm
Machine weight: Approx. 16,600–17,000 kg
Application:
Designed for heavy industry, shipbuilding, power plant maintenance, and large shaft machining. Ideal for long, heavy components requiring precision turning and threading.
Type: Heavy-duty long-bed engine lathe
Technical specifications:
- Distance between centers: 5,000 mm
- Max. turning diameter (swing over bed): 1,000 mm
- Max. turning diameter (over cross slide): 600–650 mm
- Max. workpiece weight: Approx. 10,000 kg (10 tonnes)
- Spindle bore diameter: Approx. 85–95 mm
- Spindle speed range: 5–500 rpm
- Main motor power: 22 kW
Threading capabilities:
- Metric threads: 1 to 120 mm
- Inch threads: 28 to 1/4 TPI
- Module threads: 0.5 to 30 M
Machine dimensions (L × W × H): Approx. 8,050 × 2,200 × 1,876 mm
Machine weight: Approx. 16,600–17,000 kg
Application:
Designed for heavy industry, shipbuilding, power plant maintenance, and large shaft machining. Ideal for long, heavy components requiring precision turning and threading.
