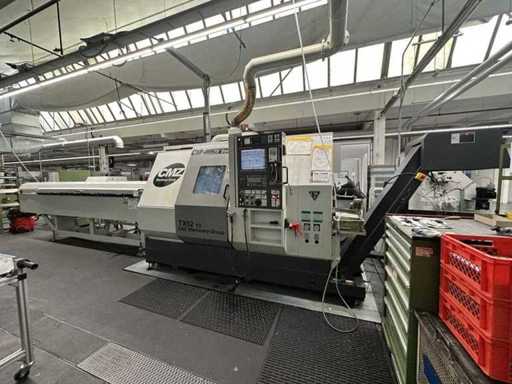

2011 CMZ TX 52 y3 CNC Lathe
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- CMZ
- Type
- TX 52 y3
- Year of build
- 2011
- Serial number
- 59
- Turning Ø
- 255mm
- Turning length
- 640mm
- Coolant pump
- Yes
- Chip conveyor
- Yes

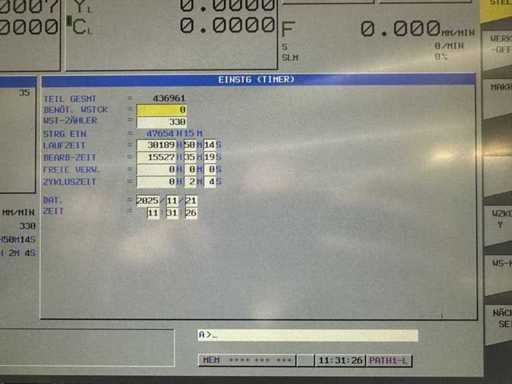

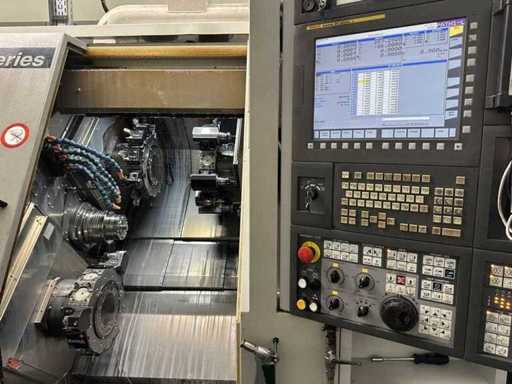

- CNC control, brand, type
- FANUC 31i-Model A
- Manual present
- Yes
- Terms of delivery
- Loaded on truck
Description
Main spindle:
Technology: Belt spindle
Speed: 5,000 rpm
Power: 15 kW
Torque: 115 Nm
C-axis: 0.001°
Bar Passage: 52 mm

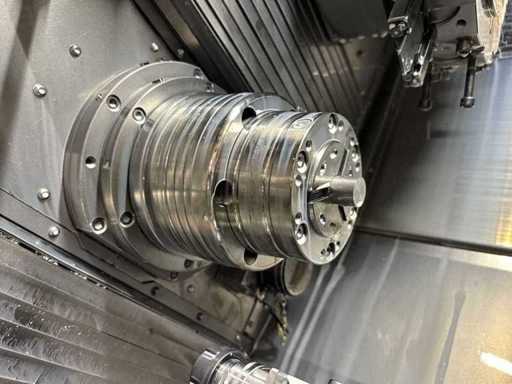

Chuck: Hainbuch Spanntop
Sub-spindle:
Technology: Belt spindle
Speed: 5,000 rpm
Power: 7.5 kW
Torque: 86 Nm
C-axis: 0.001°
Bar Passage: 52 mm

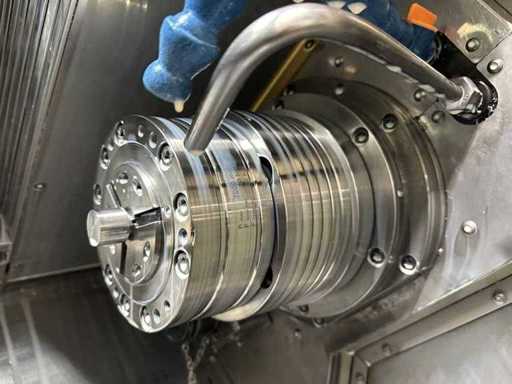

Chuck: Hainbuch Spanntop

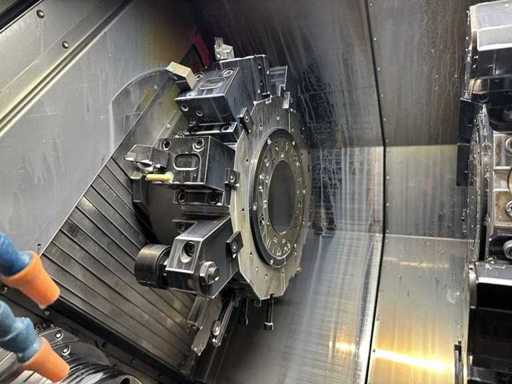

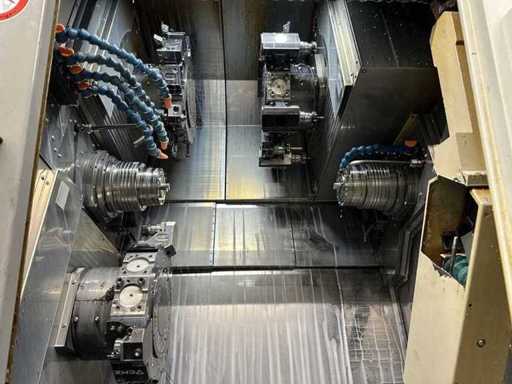

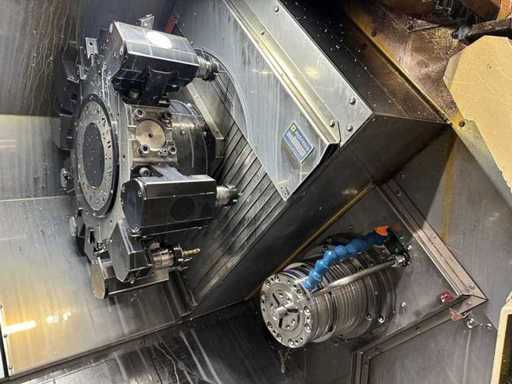

Tool carrier I (X/Y/Z):
Technology: Tool turret
Number of stations: 12
Tool holder: BMT
Tool drive: 6,000 rpm, 52 Nm
Travels:
– X-axis: 190 mm
– Y-axis: 80 mm (+/– 40 mm)
– Z-axis: 300 mm
Tool carrier II (X/Y/Z):
Technology: Tool turret
Number of stations: 12
Tool holder: BMT
Tool drive: 6,000 rpm, 52 Nm
Travels:
– X-axis: 190 mm
– Y-axis: 80 mm (+/– 40 mm)
– Z-axis: 635 mm
Tool carrier III (X/Y/Z):
Technology: Tool turret
Number of stations: 12
Tool holder: BMT
Tool drive: 6,000 rpm, 52 Nm
Travels:
– X-axis: 190 mm
– Y-axis: 80 mm (+/– 40 mm)
– Z-axis: 500 mm

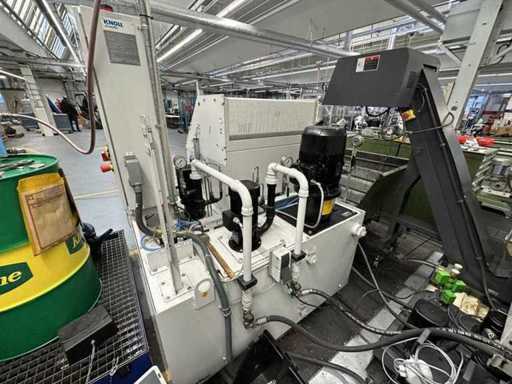

Equipment / Accessories:

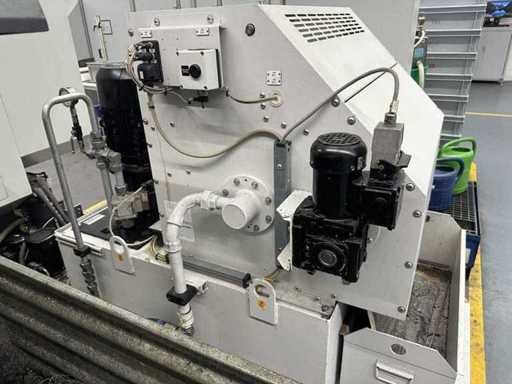

Chip disposal: Chip conveyor
Coolant supply: IKZ plant

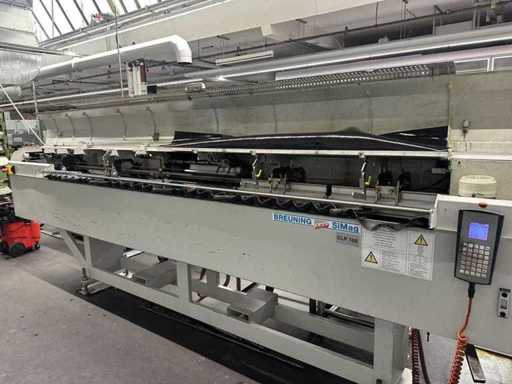

Bar feeder: Irco Breuning SiMag 70.1 – 3000
Part removal: Parts gripper with indexing belt
Setup operation: Electronic handwheel
Chuck: 2 × Hainbuch clamping top
Tool holders: Various driven and static holders
Technology: Belt spindle
Speed: 5,000 rpm
Power: 15 kW
Torque: 115 Nm
C-axis: 0.001°
Bar Passage: 52 mm
Chuck: Hainbuch Spanntop
Sub-spindle:
Technology: Belt spindle
Speed: 5,000 rpm
Power: 7.5 kW
Torque: 86 Nm
C-axis: 0.001°
Bar Passage: 52 mm
Chuck: Hainbuch Spanntop
Tool carrier I (X/Y/Z):
Technology: Tool turret
Number of stations: 12
Tool holder: BMT
Tool drive: 6,000 rpm, 52 Nm
Travels:
– X-axis: 190 mm
– Y-axis: 80 mm (+/– 40 mm)
– Z-axis: 300 mm
Tool carrier II (X/Y/Z):
Technology: Tool turret
Number of stations: 12
Tool holder: BMT
Tool drive: 6,000 rpm, 52 Nm
Travels:
– X-axis: 190 mm
– Y-axis: 80 mm (+/– 40 mm)
– Z-axis: 635 mm
Tool carrier III (X/Y/Z):
Technology: Tool turret
Number of stations: 12
Tool holder: BMT
Tool drive: 6,000 rpm, 52 Nm
Travels:
– X-axis: 190 mm
– Y-axis: 80 mm (+/– 40 mm)
– Z-axis: 500 mm
Equipment / Accessories:
Chip disposal: Chip conveyor
Coolant supply: IKZ plant
Bar feeder: Irco Breuning SiMag 70.1 – 3000
Part removal: Parts gripper with indexing belt
Setup operation: Electronic handwheel
Chuck: 2 × Hainbuch clamping top
Tool holders: Various driven and static holders
Additional details
Payment term:
within three days
Pick-up:
09.03.- 13.03.2026, by appointment only
Location:
71711 Steinheim
All items are sold as used and uninspected unless otherwise noted.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
Note: Late pick-up may incur additional storage, handling or dismantling costs that will be borne by the buyer.
Export: If a BAFA permit is required, additional costs may also be incurred for storage, handling or dismantling.
