2011 MUGA R6040 CNC milling machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- MUGA
- Type
- R6040
- Year of build
- 2011
- Terms of delivery
- Loaded on truck
Description
Machine type: CNC Vertical Machining Center
Manufacturer / Brand: MÜGA Werkzeugmaschinen GmbH
Model / Type: R6040
Year of manufacture: 2011
Serial number: ACMM6 004
Control unit: Mitsubishi M70 CNC
Country of manufacture: Germany

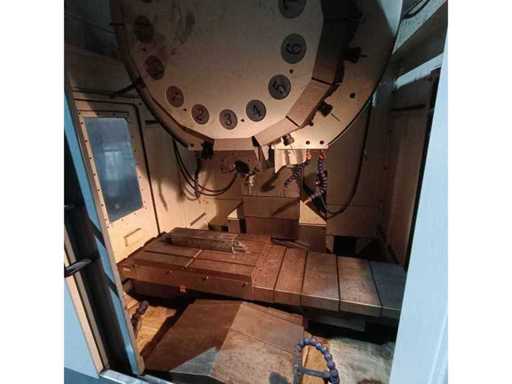

Worktable:
Table size: 700 x 410 mm
Max. table load: 250 kg
Travel ranges:
X-axis travel: 600 mm
Y-axis travel: 400 mm
Z-axis travel: 400 mm

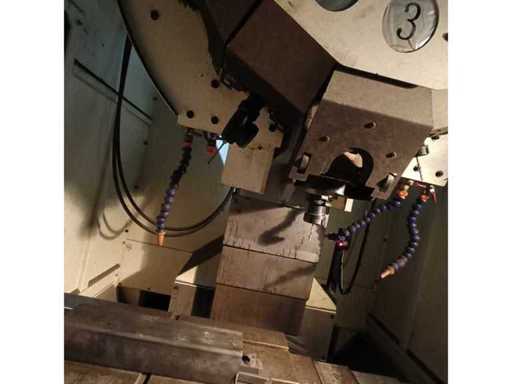

Spindle:
Spindle taper: ISO 40
Spindle speed: up to 12,000 rpm
Spindle type: Direct drive
Tool system:
Tool magazine capacity: 12 positions
Max. tool diameter: 80 mm
Max. tool length: 250 mm
Feeds:
Rapid traverse: up to 28 m/min
Measuring systems:

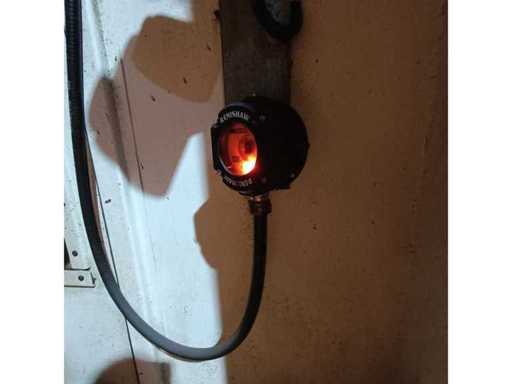

Renishaw tool measurement: yes
Renishaw workpiece measurement: yes
Electrical data:
Voltage: 400 V
Frequency: 50 Hz
Connected load: approx. 19 kW
Dimensions and weight:
Overall dimensions (L x W x H): approx. 2,654 x 1,700 x 2,400 mm
Approx. weight: 3,300 kg
Condition / Remarks:
Used CNC machining center in working condition.
Normal wear consistent with age and use.
Manufacturer / Brand: MÜGA Werkzeugmaschinen GmbH
Model / Type: R6040
Year of manufacture: 2011
Serial number: ACMM6 004
Control unit: Mitsubishi M70 CNC
Country of manufacture: Germany
Worktable:
Table size: 700 x 410 mm
Max. table load: 250 kg
Travel ranges:
X-axis travel: 600 mm
Y-axis travel: 400 mm
Z-axis travel: 400 mm
Spindle:
Spindle taper: ISO 40
Spindle speed: up to 12,000 rpm
Spindle type: Direct drive
Tool system:
Tool magazine capacity: 12 positions
Max. tool diameter: 80 mm
Max. tool length: 250 mm
Feeds:
Rapid traverse: up to 28 m/min
Measuring systems:
Renishaw tool measurement: yes
Renishaw workpiece measurement: yes
Electrical data:
Voltage: 400 V
Frequency: 50 Hz
Connected load: approx. 19 kW
Dimensions and weight:
Overall dimensions (L x W x H): approx. 2,654 x 1,700 x 2,400 mm
Approx. weight: 3,300 kg
Condition / Remarks:
Used CNC machining center in working condition.
Normal wear consistent with age and use.
Remarks
Unchecked
