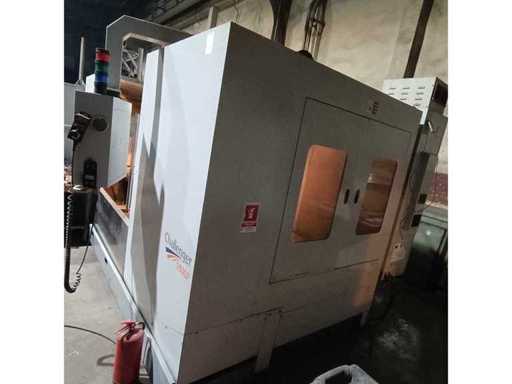

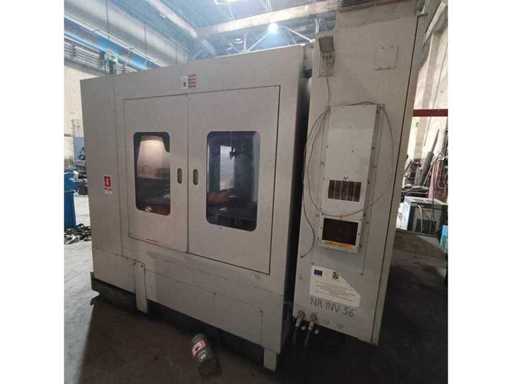

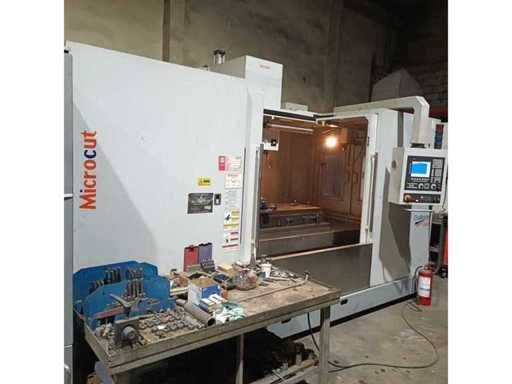

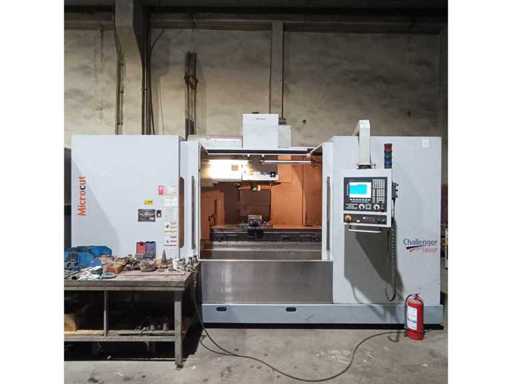

2015 MICROCUT VMC 1600 F CNC milling machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- MICROCUT
- Type
- VMC 1600 F
- Year of build
- 2015
- Serial number
- 159472
- Terms of delivery
- Loaded on truck
Description
Machine type: CNC Vertical Machining Center

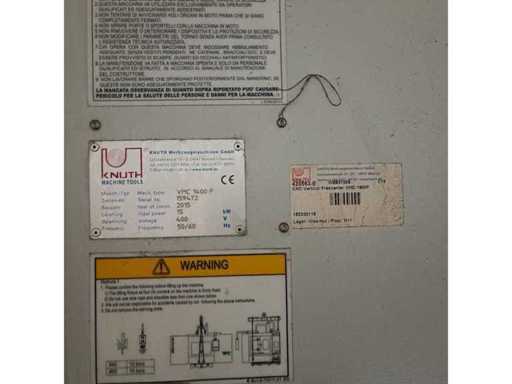

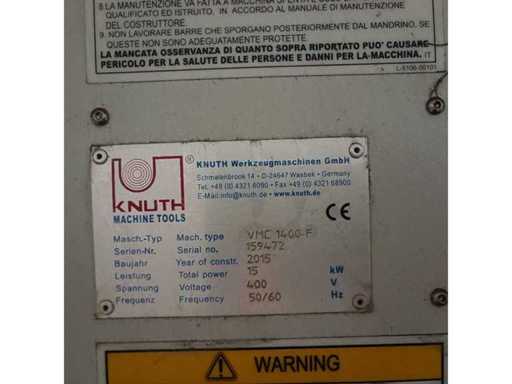

Manufacturer: KNUTH Werkzeugmaschinen GmbH
Model / Type: VMC 1400 F
Year of manufacture: 2015
Serial number: 159472

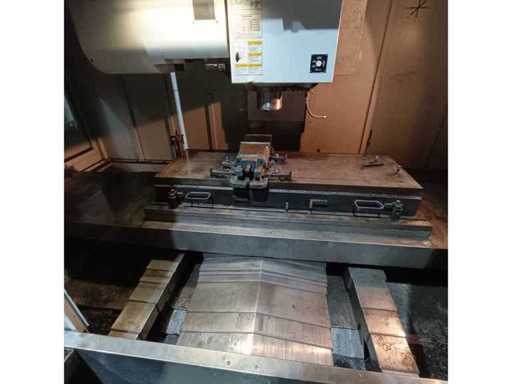

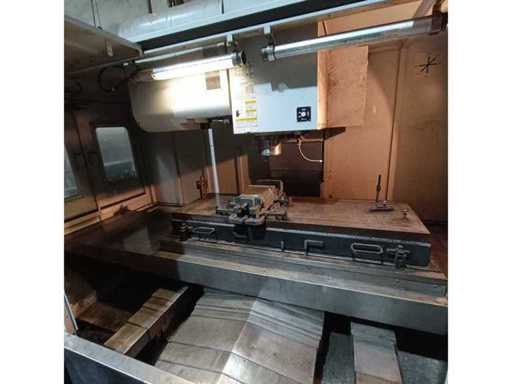

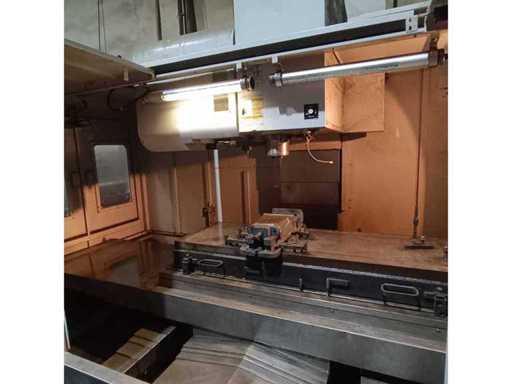

Worktable:
Table size: 1800 x 800 mm
Table height: 880 mm
T-slots: 18 mm / 6 slots
Max. table load: 2000 kg
Travels:
X-axis travel: 1600 mm
Y-axis travel: 800 mm
Z-axis travel: 710 mm
Distance spindle–table: 120 – 830 mm
Spindle:
Spindle taper: ISO 40
Spindle speed: up to 12,000 rpm
Main motor power: 10 kW
Feed rates:
Rapid traverse (X/Y/Z): 24 m/min
Working feed (X/Y/Z): 10 m/min
Accuracy:
Positioning accuracy: ±0.005 mm
Repeatability: 0.005 mm

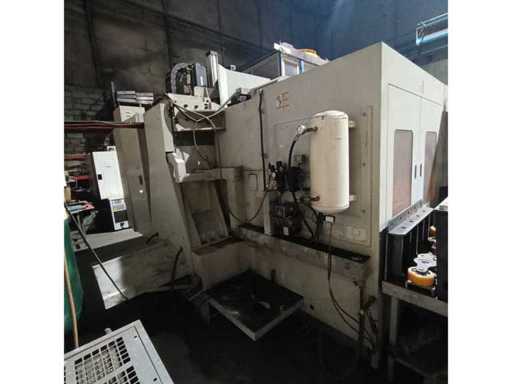

Pneumatics:
Air pressure required: 6 bar
Air consumption: 400 l/min

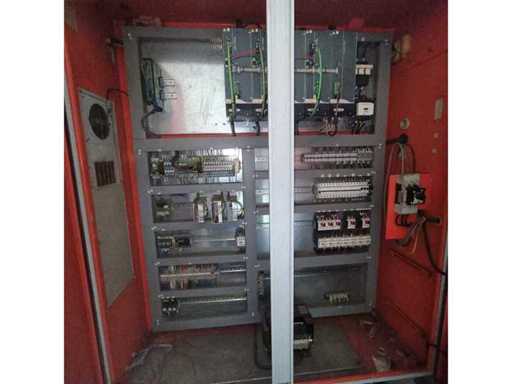

Electrical data:
Installed power: 35 kVA
Voltage: 400 V
Frequency: 50/60 Hz
Dimensions and weight:
Footprint: approx. 2980 x 2150 mm
Dimensions without / with chip conveyor: approx. 4310 / 5340 x 3150 x 3015 mm
Weight: approx. 12,000 kg
Condition:
Used CNC machining center in working condition. Normal wear consistent with age and usage.
Manufacturer: KNUTH Werkzeugmaschinen GmbH
Model / Type: VMC 1400 F
Year of manufacture: 2015
Serial number: 159472
Worktable:
Table size: 1800 x 800 mm
Table height: 880 mm
T-slots: 18 mm / 6 slots
Max. table load: 2000 kg
Travels:
X-axis travel: 1600 mm
Y-axis travel: 800 mm
Z-axis travel: 710 mm
Distance spindle–table: 120 – 830 mm
Spindle:
Spindle taper: ISO 40
Spindle speed: up to 12,000 rpm
Main motor power: 10 kW
Feed rates:
Rapid traverse (X/Y/Z): 24 m/min
Working feed (X/Y/Z): 10 m/min
Accuracy:
Positioning accuracy: ±0.005 mm
Repeatability: 0.005 mm
Pneumatics:
Air pressure required: 6 bar
Air consumption: 400 l/min
Electrical data:
Installed power: 35 kVA
Voltage: 400 V
Frequency: 50/60 Hz
Dimensions and weight:
Footprint: approx. 2980 x 2150 mm
Dimensions without / with chip conveyor: approx. 4310 / 5340 x 3150 x 3015 mm
Weight: approx. 12,000 kg
Condition:
Used CNC machining center in working condition. Normal wear consistent with age and usage.
Remarks
Unchecked

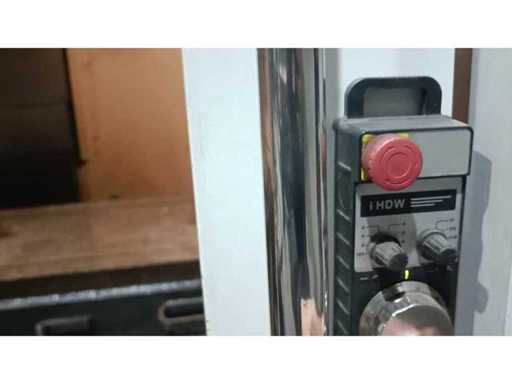

Video
