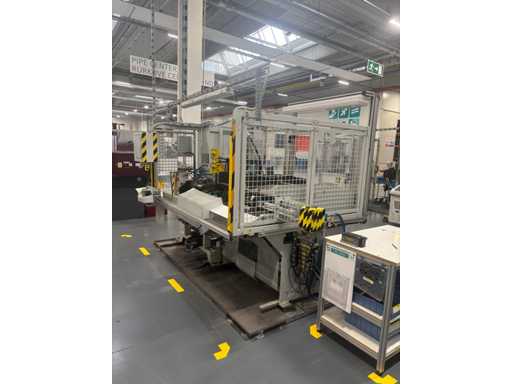

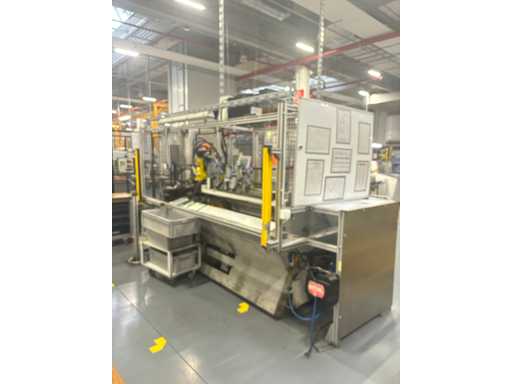

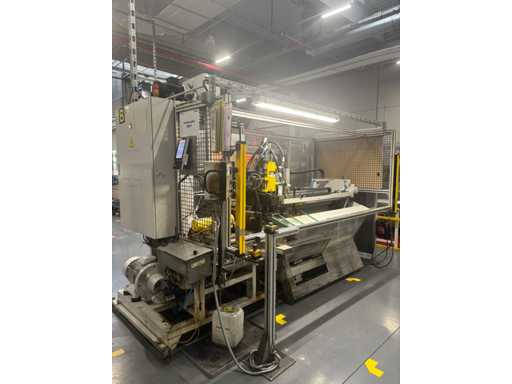

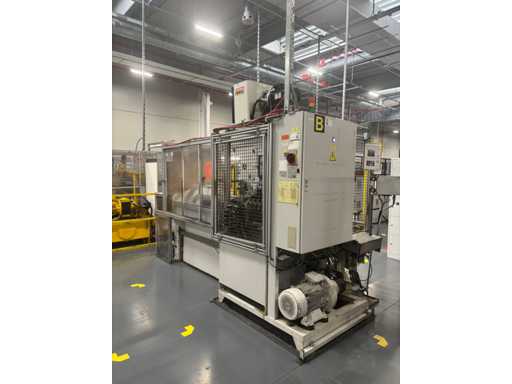

E.M.S. PHV 50/8T-MA tube forming machine
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- E.M.S.
- Year of build
- 2002
- Machine weight
- 2500kg
- Dimension l
- 3600mm
- Dimension w
- 1700mm
- Dimension h
- 2100mm
- Terms of delivery
- Ex foundation-unpackaged
Description
General data:
Machine type: Hydraulic pipe end forming machine

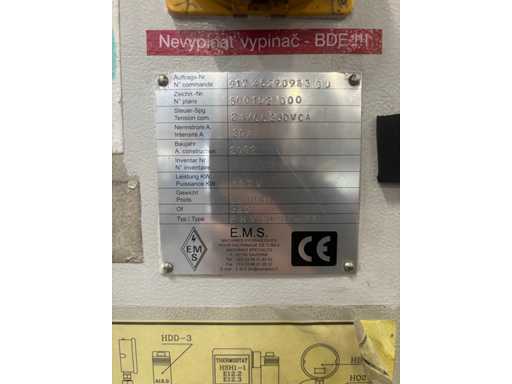

Serial no.: 500102/000
Condition: used
Power & electrical:
Voltage: 230 V / 50 Hz
Control voltage: 24 V
Power: 13 kW
Nominal current: 30 A
Hydraulic unit:
Main pressure: 160 bar
Oil type: HLP 46
Oil volume: 240 L
Compressed air system:
Pressure: 6 bar
Quality class (ISO 8573-1:2010): 7:4:4
Connection: 1/4"
Noise level:
Sound pressure: <75 dB(A)
Machine type: Hydraulic pipe end forming machine
Serial no.: 500102/000
Condition: used
Power & electrical:
Voltage: 230 V / 50 Hz
Control voltage: 24 V
Power: 13 kW
Nominal current: 30 A
Hydraulic unit:
Main pressure: 160 bar
Oil type: HLP 46
Oil volume: 240 L
Compressed air system:
Pressure: 6 bar
Quality class (ISO 8573-1:2010): 7:4:4
Connection: 1/4"
Noise level:
Sound pressure: <75 dB(A)
Remarks
unchecked
