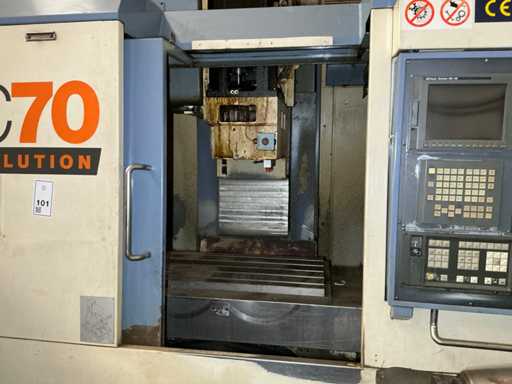

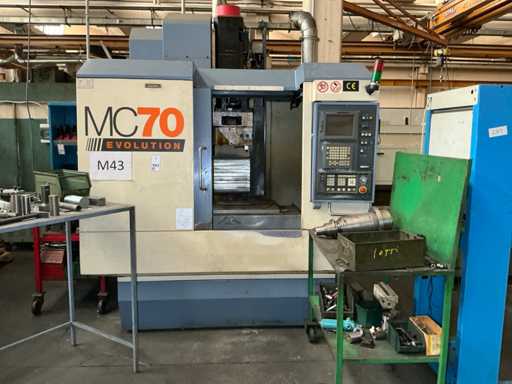

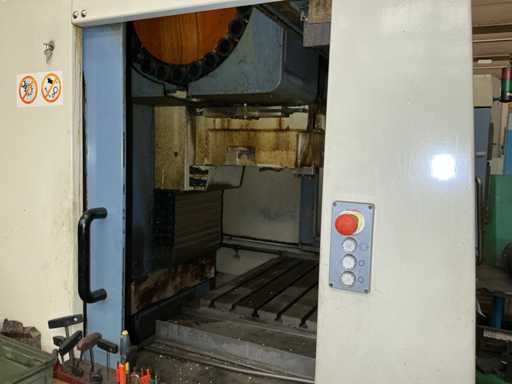

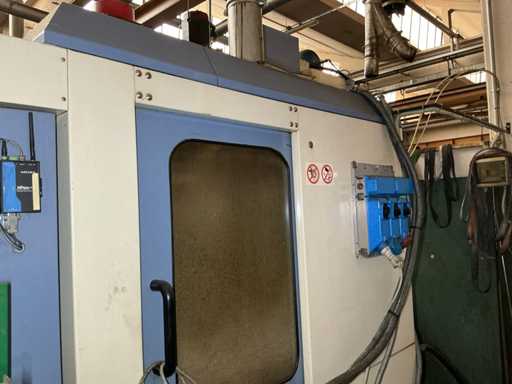

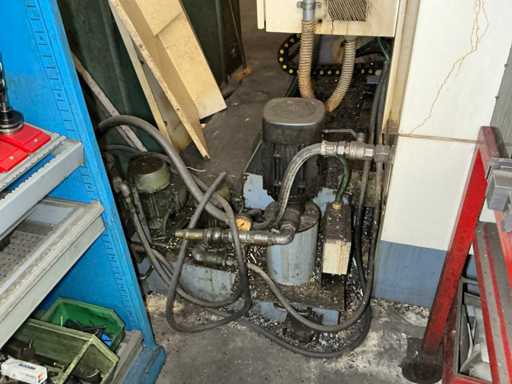

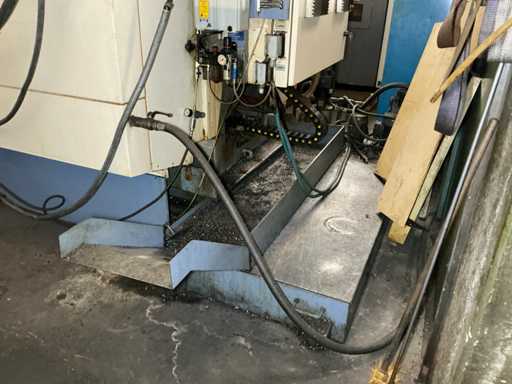

FAMUP - MC-70 E - CNC machining center - 1999

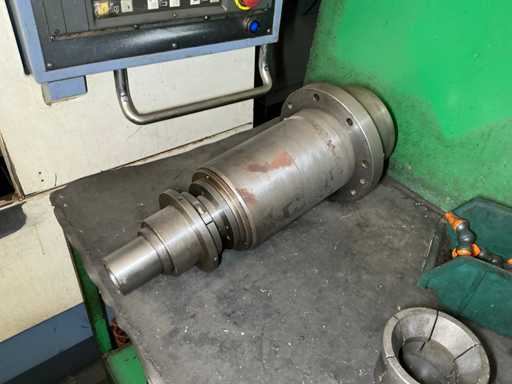

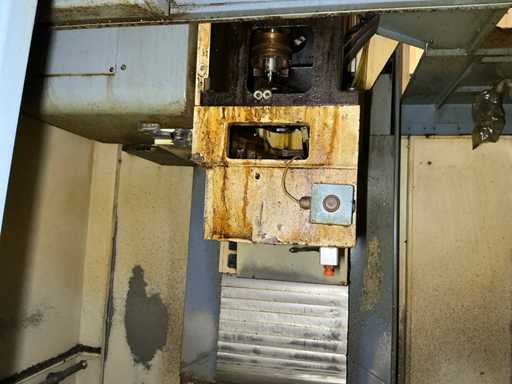

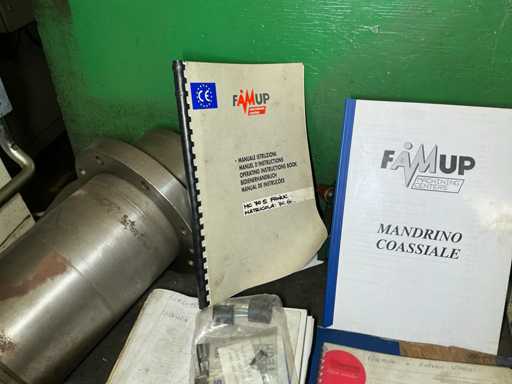

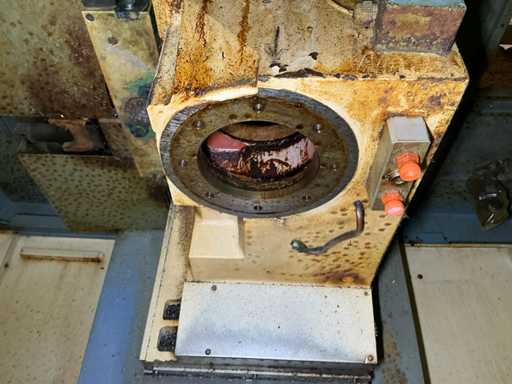

Spindle disconnected from the machine included in the lot

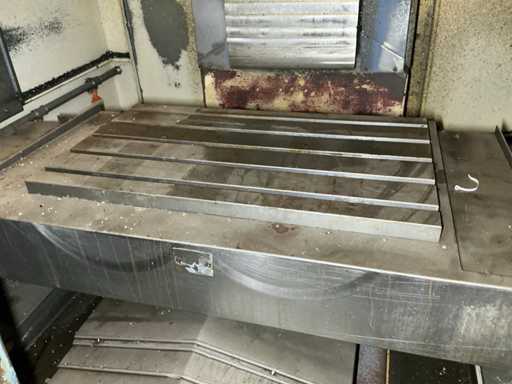

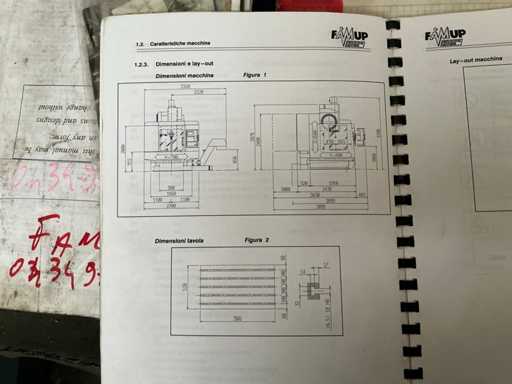

Table dimensions 900 x 520 mm
General

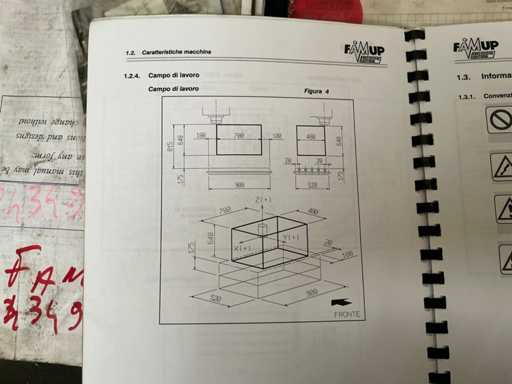

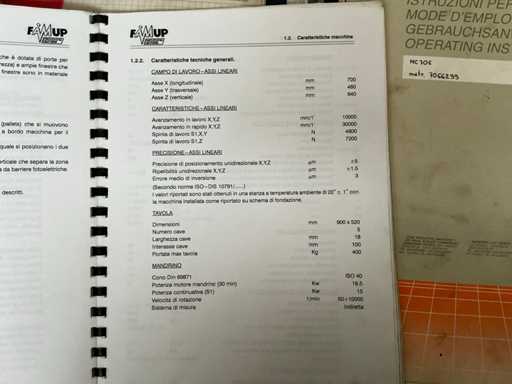

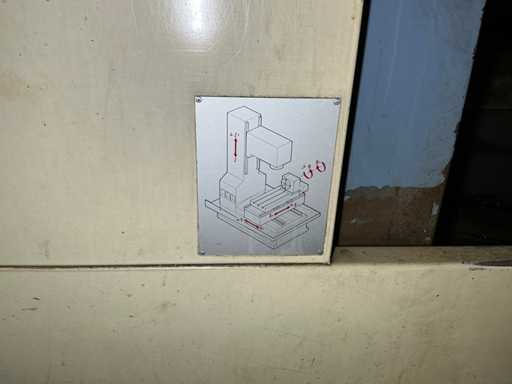

technical characteristics WORKING RANGE – LINEAR
AXES X-axis (longitudinal): 700 mm
Y-axis (transverse): 480 mm
Z-axis (vertical): 640 mm
FEATURES – LINEAR
AXES Feed rate X, Y, Z: 10 000 mm/min
Rapid feed X, Y, Z: 30 000 mm/min
Working Thrust S1, X, Y: 4800 N
Working thrust S1, Z: 7200 N
PRECISION – LINEAR
AXES Unidirectional positioning accuracy X, Y, Z: ±5 μm
Unidirectional repeatability X, Y, Z: ±1.5 μm
Average reversal error: ±3 μm

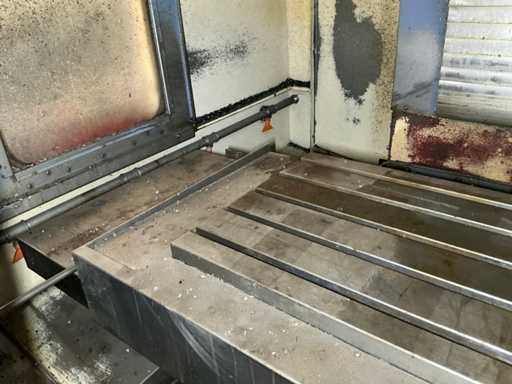

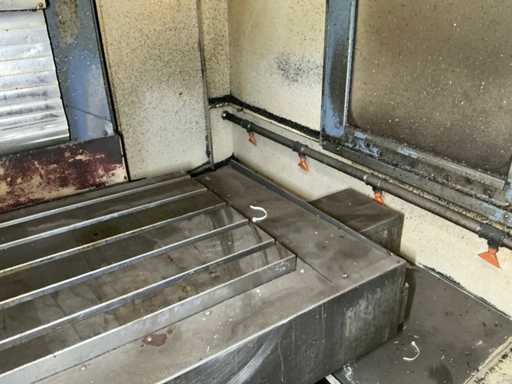

TABLE
Dimensions: 900 × 520 mm
Number of slots: 5
Slot width: 18 mm
Slot centre distance: 100 mm
Maximum table capacity: 400 kg

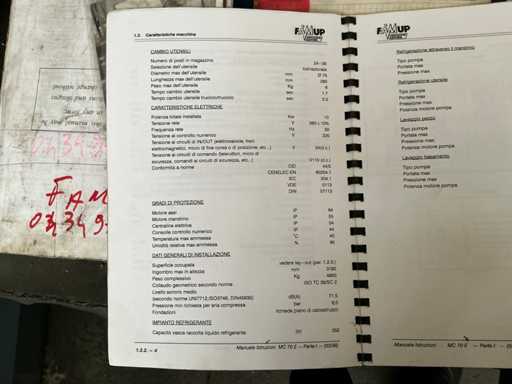

Mandrel
DIN 69871 Cone: ISO 40
Spindle motor power (30 min): 18.5 kW
Continuous power (S1): 15 kW
Rotational speed: 50 ÷ 10,000 min⁻¹
Measurement system: indirect

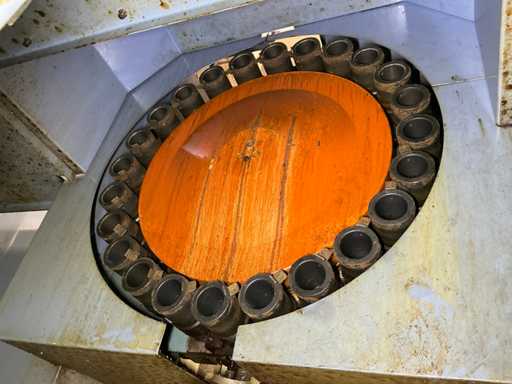

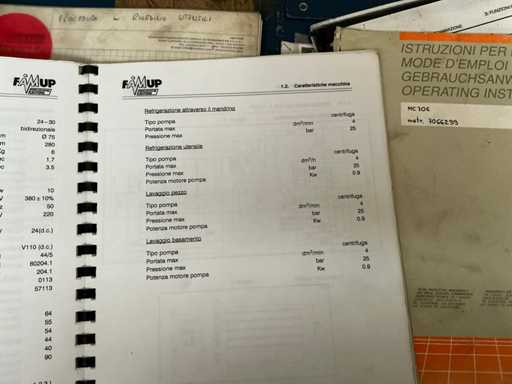

TOOL CHANGE
Number of Spaces in Stock: 24–30
Tool selection: bidirectional
Max tool diameter: 75 mm
Max tool length: 280 mm
Max tool weight: 6 kg
Tool change time: 1.7 sec
Chip/chip tool change time: 3.5 sec

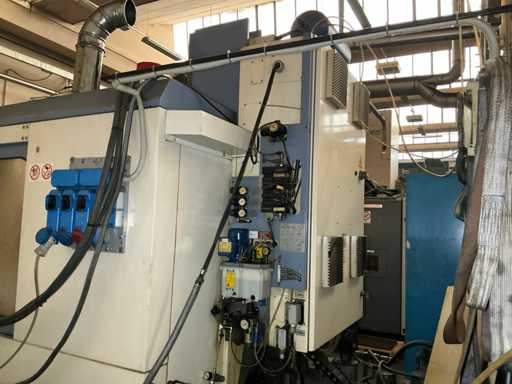

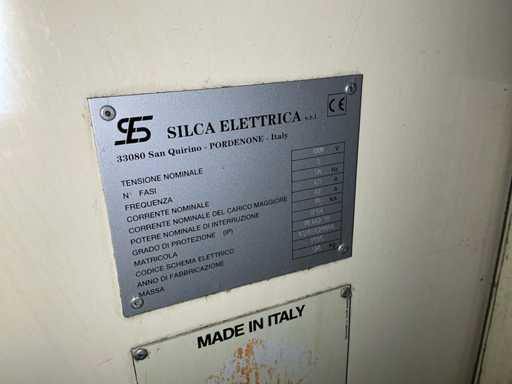

ELECTRICAL CHARACTERISTICS
Total installed power: 10 kW
Mains voltage: 380 V ±10%
Mains frequency: 50 Hz
Voltage at the numerical control: 220 V (AC)
DEGREES OF PROTECTION
Axis motor: IP 64
Spindle motor: IP 54
Electrical control unit: IP 54
Console control: IP 40
