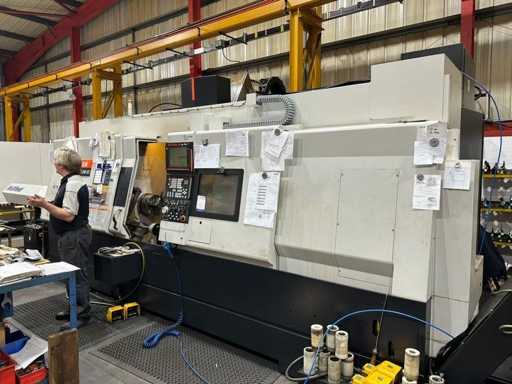

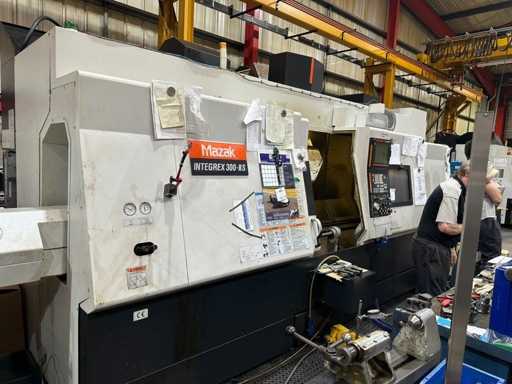

MAZAK - INTEGREX 300-IIIS - CNC lathe - 5-axis multi-tasking machine - 2005
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- MAZAK
- Type
- INTEGREX 300-IIIS
- Year of build
- 2005
- Serial number
- 181125
- Machine weight
- 12700kg
- Terms of delivery
- Free on truck
Description
Model: MAZAK INTEGREX 300-IIIS
Type: 5-axis multi-tasking CNC turn/mill center

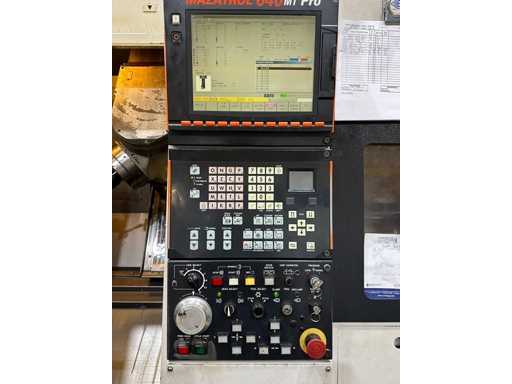

CNC Control: Mazatrol 640 MT Pro
Key specifications:
- Max. turning length: 1,524 mm (60")
- Max. turning diameter: 635–760 mm (25"–30")
- Main spindle power: 22–30 kW (30–40 HP)
- Main spindle speed: 3,500–4,000 rpm
- Milling spindle speed: 10,000–12,000 rpm
- Milling spindle power: 15–20 kW (20–25 HP)
- B-axis swivel range: -30° to +195° (225° total)
- Y-axis travel: ±115 mm (total 230 mm)
- Sub-spindle (W-axis): Yes – for second-operation machining
- Automatic tool changer (ATC): 40 to 80 tools (model-dependent)
Features:
- Done-in-One® multi-tasking capability
- Simultaneous 5-axis contouring
- High-speed, high-accuracy machining
- Ideal for aerospace, medical, automotive, and energy industries
Machine weight: Approx. 13,000–15,000 kg
Type: 5-axis multi-tasking CNC turn/mill center
CNC Control: Mazatrol 640 MT Pro
Key specifications:
- Max. turning length: 1,524 mm (60")
- Max. turning diameter: 635–760 mm (25"–30")
- Main spindle power: 22–30 kW (30–40 HP)
- Main spindle speed: 3,500–4,000 rpm
- Milling spindle speed: 10,000–12,000 rpm
- Milling spindle power: 15–20 kW (20–25 HP)
- B-axis swivel range: -30° to +195° (225° total)
- Y-axis travel: ±115 mm (total 230 mm)
- Sub-spindle (W-axis): Yes – for second-operation machining
- Automatic tool changer (ATC): 40 to 80 tools (model-dependent)
Features:
- Done-in-One® multi-tasking capability
- Simultaneous 5-axis contouring
- High-speed, high-accuracy machining
- Ideal for aerospace, medical, automotive, and energy industries
Machine weight: Approx. 13,000–15,000 kg
