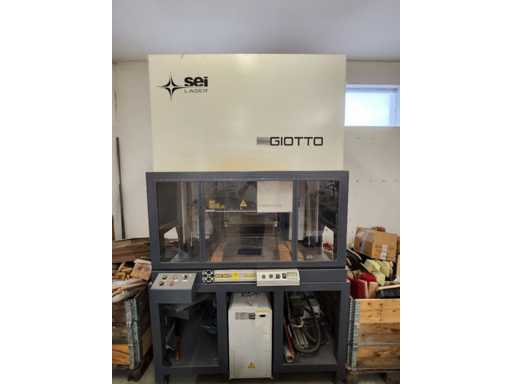

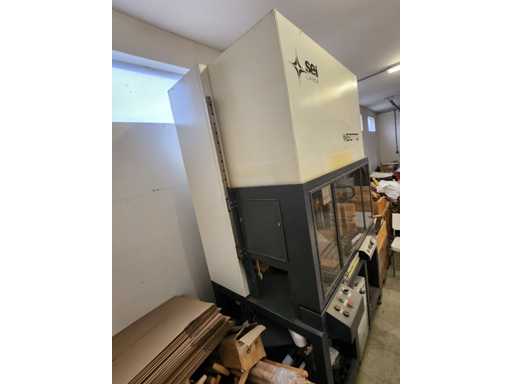

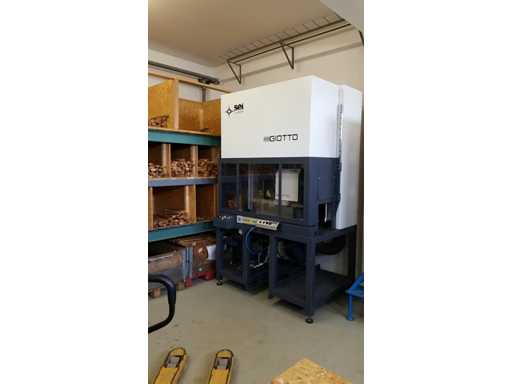

SEI Laser Italy - SEI GIOTTO CO2 3ax Compact - Laser for industrial marking and engraving primarily of wooden products - 2015

Type: Industrial CO₂ laser engraving & marking system
Installation: OEM (open integration), designed for production line use
Laser specifications:
- Laser type: CO₂
- Working area: 600 × 600 mm
- Nominal laser power: 135 W
- Emitted optical power: >145 W
- Polarization: Linear
- Beam quality (M²): <1.2
- Beam diameter (across entire area): 500 μm
- Repetition frequency: 0.1–50 kHz
- Scanning head speed: 3–6 m/s
- Cooling: Water-cooled (closed loop)
- Expected service life: ~20,000 h
Scanning head technology:
- 3-axis galvo system
- Constant beam diameter over full working field
- Optical X, Y: Galvo motors with optical position sensors
- Optical Z: High-speed linear drive
Control system:
- Integrated dual-board DSP controller
- 3-axis interpolation motor control
- Resolution: 16-bit
- Protection class: IP54
Connectivity:
- LAN 10/100 Mbps
- RS232 / RS485
- Digital I/O
- Encoder signal input
- Synchronization support
Supported file formats:
PLT, DXF, BMP, PCX, TIF, JPEG, GIF, MCL
Markable materials:
Wood, paper, leather
Accessories included:
- Rotary device (laser-synchronized)
- Full technical documentation
- Installation, operating, and programming manuals
- Control & programming software (Windows 7+ compatible)
Applications:
High-speed, high-precision marking and engraving for furniture, packaging, crafts, and industrial product identification.
