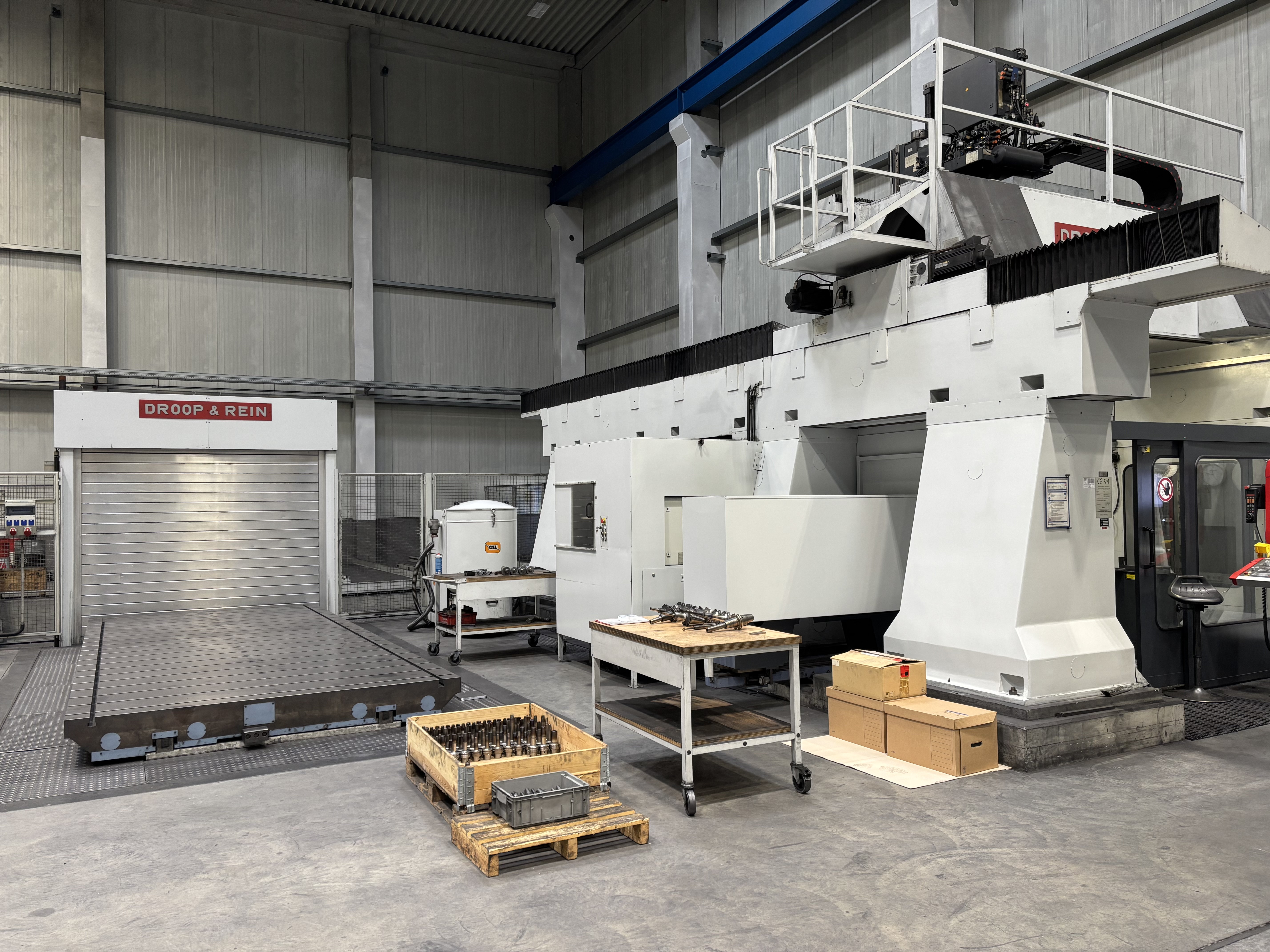

DROOP + REIN FOG 2500 HS 11/13 NPW High-Speed Machining Center

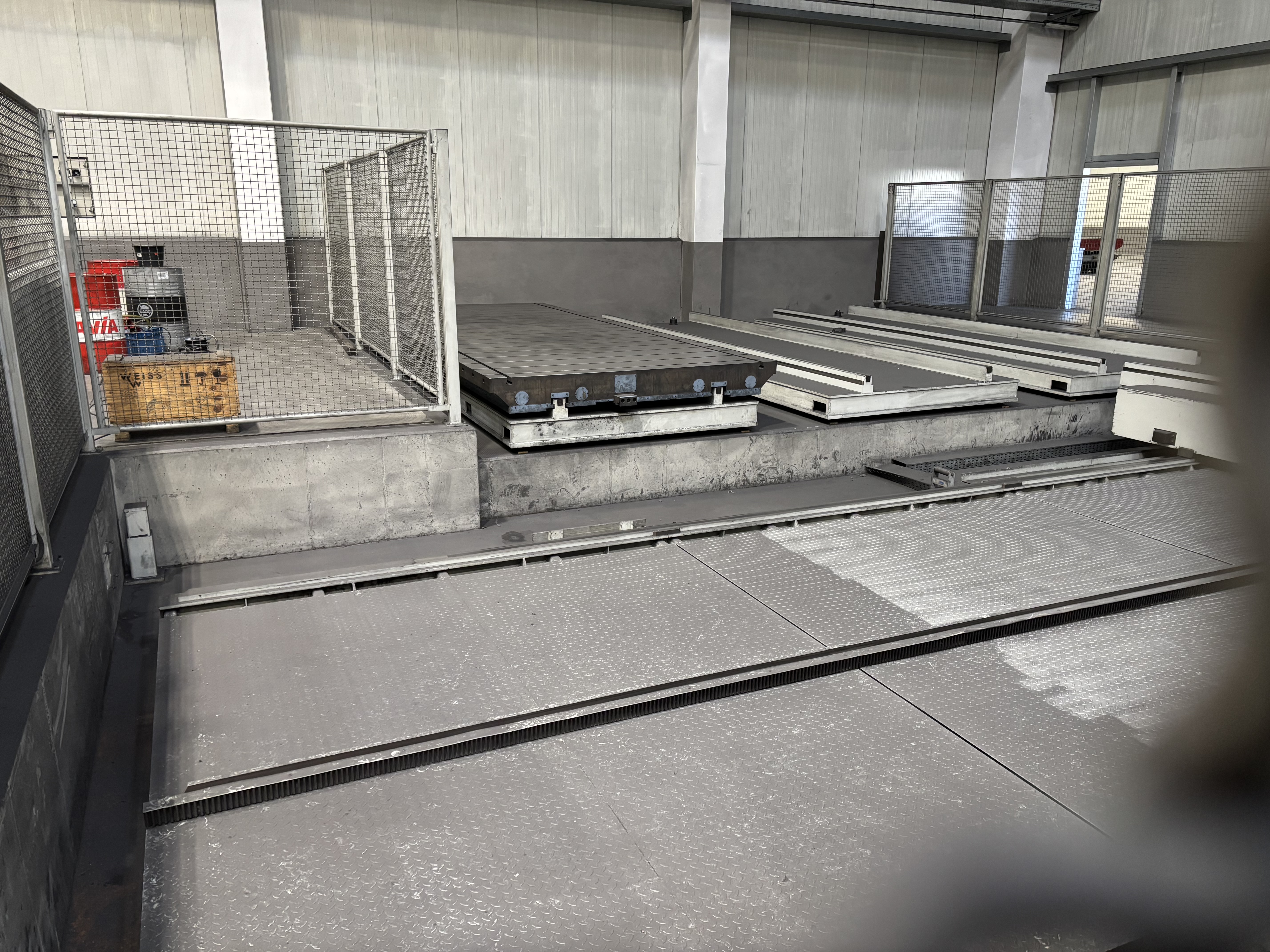

The Droop & Rein FOG 2500 received a retrofit in 2017 at a cost of around €750,000, during which the complete control cabinets, cabling, drives, controllers and measuring systems were renewed and converted to a Heidenhain iTNC 530 HSCI controller; in addition, the machine is equipped with a pallet changer with 3 pallets.
Serial number, Year of manufacture and Control System
Serial Number: 01007
Year of manufacture: 1994 / 2017

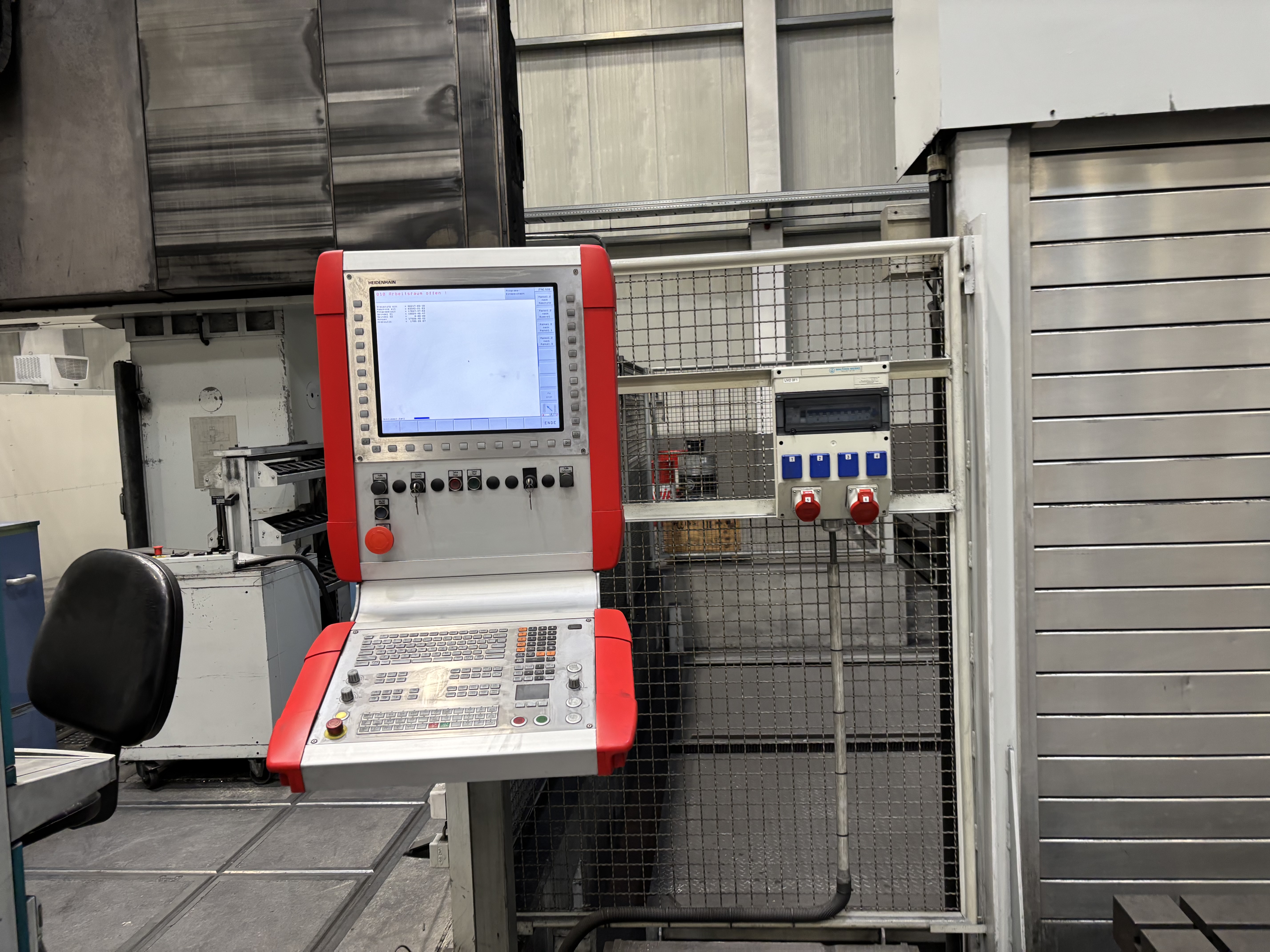

Control: HEIDENHAIN iTNC 530 HSCI
Working Area
Passage between stands: 3,500 mm
Clamping surface: 6,000 x 2,500 mm
Distance clamping surface to milling spindle nose Fork milling head max.: 1,800 mm
Max. payload: 20,000 kg
Travel distances and Travel Speeds
X-axis axis travel: 6,500 mm
Axis travel Y-axis: 2,500 mm
Axis travel Z-axis: 1,200 mm
Rapid traverse X, Y, Z axis: 15 m/min
Feed speed X, Y, Z axis: 15,000 mm/min

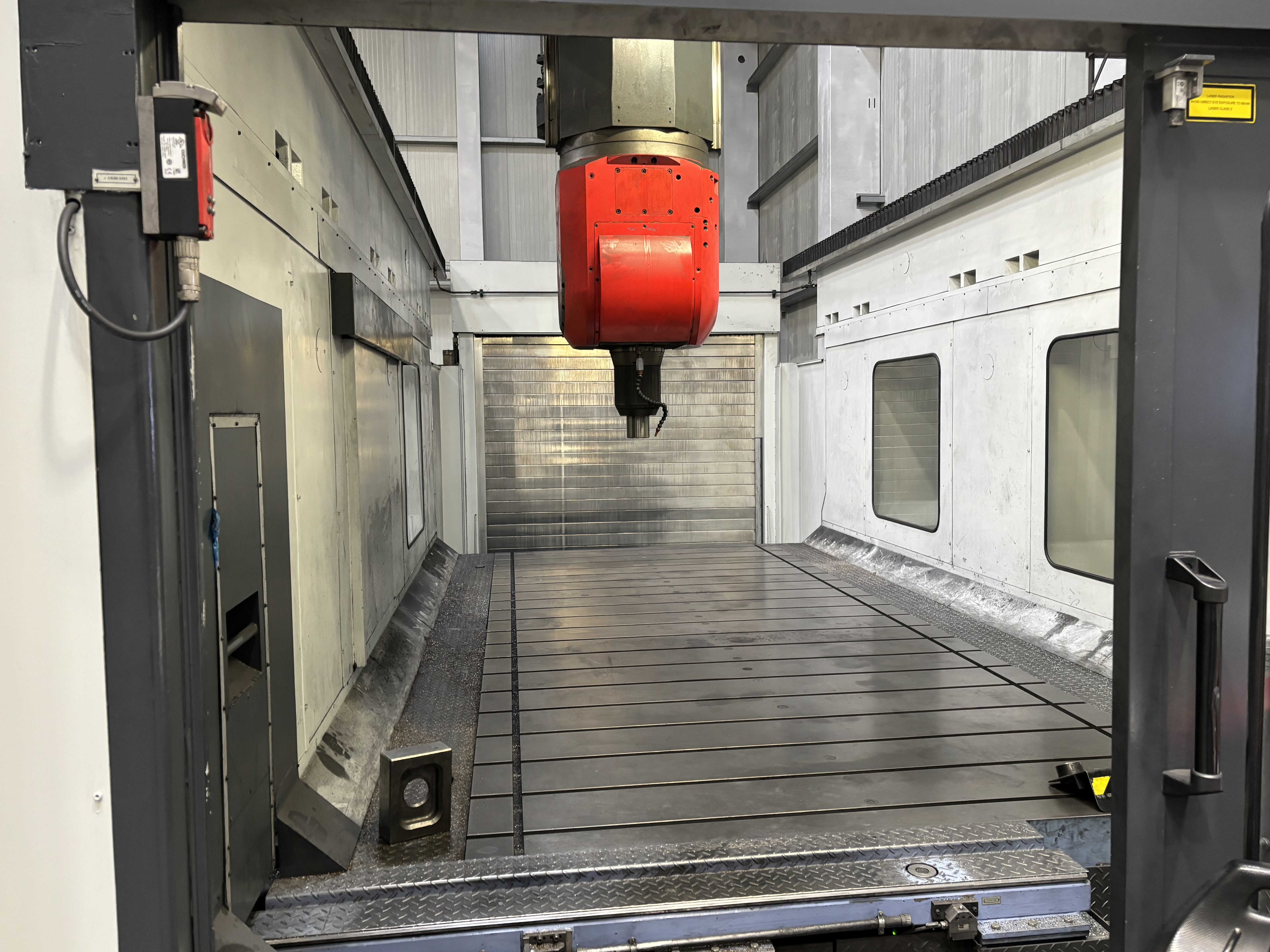

Fork milling head and tool changer
Two motor spindles: HSK-63 (16,000 rpm)
Motor spindle: HSK-100 (7,500 rpm)
Tool change capacity: 60 tools
General data
Grundig FAC 830 Monitoring System
Chip extraction device PROFI 690 / 1 -7.5
The machine electrics are decoupled from the electrical system of the control cabinet. Both investment genes can be purchased separately.
Machine dimensions approx.
Length: 12,500 mm
Width: 10,500 mm
Height: 6,300 mm
